2050

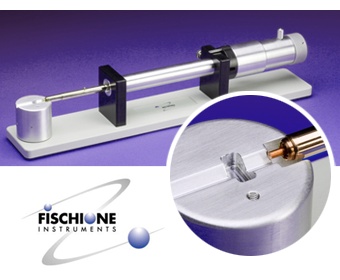

On Axis Rotation Tomography Holder
The
2050 on Axis Rotation Tomography Holder accepts either rod-shaped
or conically-shaped specimens and rotates them fully through
360° about the axis of the holder. On-axis rotation tomography
provides the maximum achievable amount of data from each specimen.
The 2050 features a cylindrical specimen cartridge into which
a sample post is of either 1.8mm APFIM specimen mounts or
1mm to accept FIB-prepared specimens can be inserted.
Initially,
the specimen can be fully rotated through 360° to select the
proper specimen orientation. A three-position precision indexing
mechanism then provides the means to orient the specimen in
120° increments. The 2050 on Axis Rotation Tomography Holder
allows 360° image acquisition and tomographic reconstruction
without the loss of information due to the missing wedge.
For
more information on the 2050 on Axis Rotation Tomography Holder,
please contact the nanoTechnology Systems team on +61 3 9432
8932.
